Description
Product Overview
The Fleet Vision Dashcam is a professional dual-channel 1080P 4G dashcam designed for fleets and commercial vehicles. Featuring AI-powered Driver Monitoring (DMS) and Advanced Driver Assistance (ADAS), it enhances driver safety while providing real-time tracking and cloud connectivity via SIM-based 4G LTE.
Key Features
- Full HD Dual Recording: Front and interior 1080P lenses with IR-assisted cabin view.
- 4G LTE + Wi-Fi: Real-time tracking, video upload, and remote playback via mobile app.
- AI Driver Alerts: ADAS (lane departure, collision warning) and DMS (fatigue, distraction detection).
- Wide FOV: Front 125° / Interior 120° wide-angle coverage.
- Event Protection: G-sensor locks files on impact.
- Expandable Storage: microSD up to 256GB (Class 10+).
- Durable Design: Operates from −20°C to +70°C with 12–36V input.
Specifications
| Video Resolution | Front & Cabin 1080P @ 30fps |
| Processor | Dual-core 1.2GHz |
| Storage | microSD / TF up to 256GB |
| Connectivity | 4G LTE, Wi-Fi, GPS |
| Power Supply | 12–36V DC input |
| Operating Temp | −20°C to +70°C |
| Audio | Built-in mic and speaker |
| Codec | H.265 / H.264 |
| Dimensions | 66 × 88 × 98 mm |
LTE Band Support
- EU: B1/B3/B5/B7/B8/B20/B28, TDD B38/B40/B41
- AU: B1/B2/B3/B4/B5/B7/B8/B28/B66, TDD B40
- CN: B1/B3/B5/B8, TDD B34/B38/B39/B40/B41

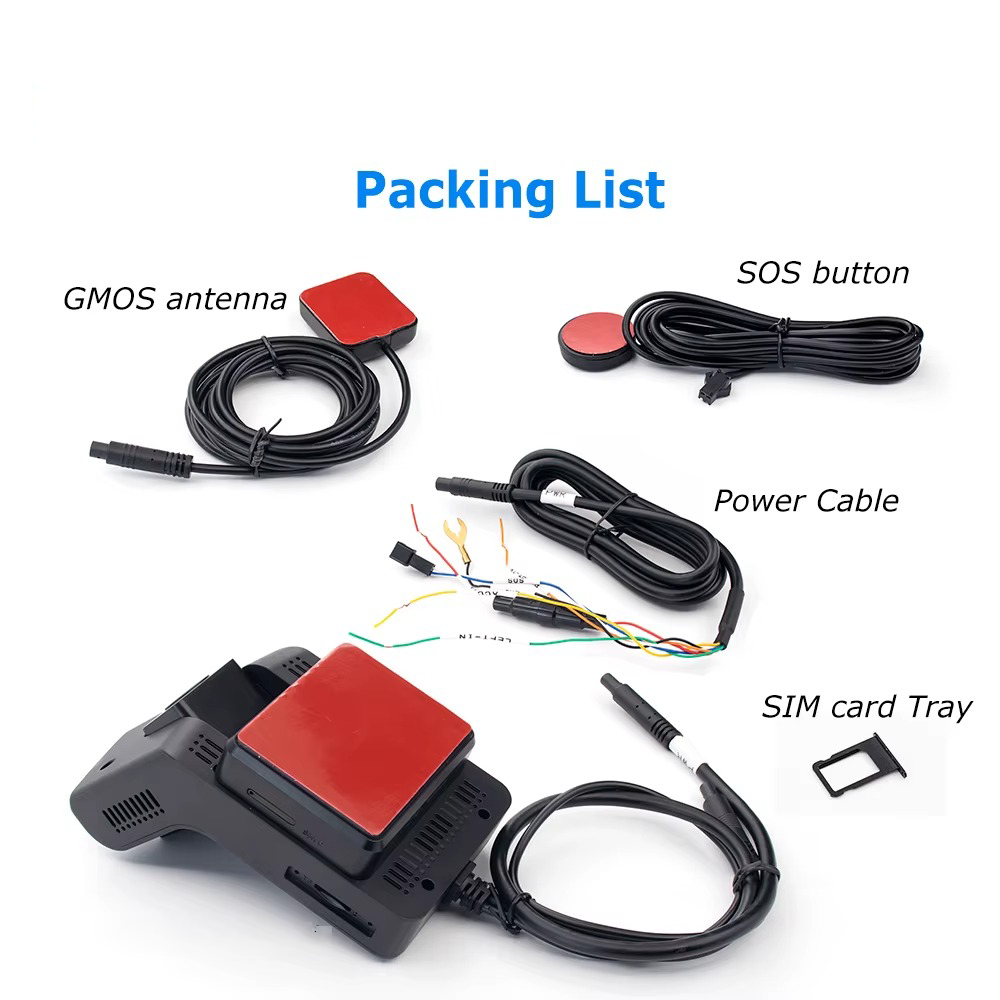

Package Contents
- Fleet Vision Dashcam Main Unit
- GMOS Antenna
- SOS Button
- Power Cable (12–36V)
- SIM Card Tray
Advanced Safety & Monitoring
- ADAS/DMS auto calibration
- AI video upload and alerts
- Voice intercom / monitoring
- Real-time video playback
- RS232/IO & extensions supported
ADAS Detection Examples
Usage Notes
- Use Class 10 or higher TF/microSD cards, formatted FAT32.
- ADAS and DMS require initial setup and calibration via mobile app.
- Ensure compliance with local in-cabin recording regulations.
